Eco-Industrial Design Plan
|
5.1. |
An eco-industrial design plan will be required for each development within the Edmonton Energy and Technology Park Special Area to address green performance standards and industrial efficiency and ecology. The eco-industrial design plan will provide a detailed description of how the development will incorporate and implement some or all of the following: |
|
5.1.1. |
Construction of high performance Green Buildings addressing: |
|
5.1.1.1. |
water conservation and management; |
5.1.1.2. |
energy conservation and management; |
5.1.1.3. |
Site environment; |
5.1.1.4. |
resources and materials; |
5.1.1.5. |
health and indoor environment; |
5.1.1.6. |
LEED certification or other third party certification Green Building rating may waive detailed descriptions of the above elements; and |
5.1.1.7. |
Green Roofs. |
|
5.1.2. |
A Statement of confirmation that the applicant has proposed and consulted with neighbouring properties in order to establish shared use agreement to ensure Eco-Industrial Networking between properties to create a corridor for the transshipment of goods and by-products, raw materials through private pipe, rail and/or road above or below the ground for some or all of the following: |
|
5.1.2.1. |
waste collection and recycling initiatives; |
5.1.2.2. |
information business intelligence and technologies; |
5.1.2.3. |
infrastructure; |
5.1.2.4. |
joint Site access and service lanes; |
5.1.2.5. |
consolidated logistics areas; |
5.1.2.6. |
coordinate and share material/resource input and output shipping; |
5.1.2.7. |
loading facilities; |
5.1.2.8. |
ground source (geothermal) heat systems; |
5.1.2.9. |
options to recover water, specifically rainwater (rooftop, on-lot); stormwater (street, off-lot); grey water; and black water (sanitary); |
5.1.2.10. |
district energy systems; |
5.1.2.11. |
parking; or |
5.1.2.12. |
ecological network. |
|
|
Landscaping Plan
|
5.2. |
A Landscape Plan must be submitted in compliance with Section 5.60 of this Bylaw, which must include the following: |
|
5.2.1. |
consistency with recommendations and objectives identified in the applicable Natural Area Management Plan; |
5.2.2. |
the location of new and existing landscape areas. Proposed Landscaping must be integrated with adjacent ecological features and be designed to support ecological network; |
5.2.3. |
arterial or freeway Frontages which include additional Landscaping;. |
5.2.4. |
landscape areas which are connected to those landscaped areas with adjacent parcels, and park and natural areas; |
5.2.5. |
tree trunk protection from winter snow clearing equipment and designated snow clearing and storage areas; |
5.2.6. |
the planting of native species and use of alternatives to pesticides and herbicides to ensure reduction in the spread of invasive species;. |
5.2.7. |
canopy trees along all walking routes; |
5.2.8. |
Landscaping is coordinated with the Street right-of-way and on adjacent lands to create a seamless transition between public and private space; |
5.2.9. |
tree and shrub plantings located in strategic areas to provide shading, climate protection, and windbreaks; |
5.2.10. |
low water demand plants to reduce or eliminate the need for Site watering and improve survivability; |
5.2.11. |
the following Low Impact Development elements: |
|
5.2.11.1. |
preserving natural Site features; |
5.2.11.2. |
minimizing and disconnecting impermeable areas; |
5.2.11.3. |
permeable materials and light coloured materials in hard landscaped areas to improve ground water recharge, reduce stormwater runoff, and reduce heat radiation; |
5.2.11.4. |
use of a rain garden is a landscape feature that is planted with native perennial plants used to slow down the stormwater runoff from impermeable surfaces and allow it to infiltrate back into the soil; |
5.2.11.5. |
bioretention areas; |
5.2.11.6. |
bioswales; or |
5.2.11.7. |
Green Roofs. |
|
5.2.12. |
that storm water runoff from Site and roofs is quality-controlled through the use of best environmental practices in on-Site retention, collection, conveyance, and treatment, prior to discharge into receiving watercourses or storm sewers; |
5.2.13. |
that use of natural areas as defining elements of the Lot, such as using the buffered edges of watercourse corridors, forest patches or wetlands to delineate rear or side lot lines, to reinforce the role and function of the ecological network in shaping the area’s built form. These edges must be established through the applicable Natural Area Management Plan; |
5.2.14. |
that green vegetated buffer areas between the edge of protected natural areas and adjacent buildings, parking lots, Drive Aisles, and service areas. The dimensioning of these buffered areas must be to the satisfaction of the Development Planner; |
5.2.15. |
that stormwater wetlands are incorporated for holding and treatment of stormwater runoff; and |
5.2.16. |
determination of Crown bed and shore claims prior to Site clearing or preparation. |
|
Drainage Servicing Report
|
5.3. |
An applicant for a Development Permit on a Site in the Petrochemical Precinct must submit a Site specific drainage servicing report to the satisfaction of the Development Planner in consultation with Drainage Services. The drainage servicing report must include, but not be limited to: |
|
5.3.1. |
waste water and storm water discharge rates, quality and quantity; and |
5.3.2. |
a geotechnical report for the location of any storm water management facilities and outfalls. |
|
5.4. |
The drainage servicing report may, at the discretion of the Development Planner, include a bird hazard mitigation plan for any planned storm water management facilities. |
Risk Management Plan
|
5.5. |
An applicant for a Development Permit on a Site in or adjacent to the Petrochemical Cluster Precinct must submit a risk management plan, including a risk assessment plan pertaining to catastrophic events, to the satisfaction of the Development Planner in consultation with the City department responsible for Fire Rescue Services and the City department responsible for Emergency Response Services to ensure all Site and building designs within all Edmonton Energy and Technology Park Zones are designed for ease of evacuation and provide protection to building occupants specific to the potential for industrial accidents. |
5.6. |
The risk management plan must include: |
|
5.6.1. |
the cumulative effects of multiple risk management Sites, which refers to the cumulative risk of facilities, pipelines, corridors, dangerous goods roads, and dangerous goods rail; |
5.6.2. |
a quantitative risk analysis using accepted risk analysis methods; and |
5.6.3. |
any on-Site production, processing, handling, storage, use or disposal of dangerous goods in excess of the quantities identified under the Alberta Fire Code, with reference to small quantity exemptions for Dangerous Goods to determine the risk of an industrial accident and the potential for additional risk resulting from the cumulative quantities of Dangerous Goods located at other surrounding facilities. |
|
5.7. |
Despite Subsection 5.5 and 5.6, a risk management plan may be conducted for and shared by multiple adjoining Sites provided development is in conjunction with one another, which must include the identification and assessment of: |
|
5.7.1. |
the Uses or activities for Sites with proposed heavy industrial or Edmonton Energy and Technology Park Zoning, or for Sites with a proposed Use that is incompatible with other Uses within 1.5 km of the Site; |
5.7.2. |
the Uses or activities of other Sites within 1.5 km that may be incompatible with the proposed Uses; |
5.7.3. |
Potential hazards, including hazardous substances, quantities, their use, and transportation, storage, and transfer points; |
5.7.4. |
the likelihood of a catastrophic incident occurring, including a frequency analysis with a historical review of the operation of the facility, other typical examples, and/or research on industrial or transportation accidents, with information sources documented; |
5.7.5. |
the consequences of an incident, which may include the: |
|
5.7.5.1. |
type of failure; |
5.7.5.2. |
description of event (e.g., gas release, explosion, fire); |
5.7.5.3. |
scale of event; |
5.7.5.4. |
area of impact; |
5.7.5.5. |
extent of exposure to hazardous materials; |
5.7.5.6. |
routes through which risk exposure occurs; |
5.7.5.7. |
characterization of harm; |
5.7.5.8. |
number of people affected; |
5.7.5.9. |
expected property damage; |
5.7.5.10. |
impact on the environment; |
5.7.5.11. |
mitigating factors; |
5.7.5.12. |
duration of event; and |
5.7.5.13. |
whether an uncontrolled release may occur. |
|
5.7.6. |
the information limitations, and the assumptions that were made in the preparation of the risk management plan; |
5.7.7. |
risk and proposed risk mitigation measures, which may include: |
|
5.7.7.1. |
buffers; |
5.7.7.2. |
building design; |
5.7.7.3. |
Site layout; |
5.7.7.4. |
operating procedures; |
5.7.7.5. |
evacuation routes; and |
5.7.7.6. |
a description of how such measures will be implemented. |
|
5.7.8. |
emergency planning and response provisions; and |
5.7.9. |
an effective communication plan to inform potentially affected parties about the potential and type of risk, and means to deal with it. |
|
Parking
|
5.8. |
A vehicle parking plan is required for proposed Vehicle Parking, to the satisfaction of the Development Planner in consultation with the applicable City Department. |
5.9. |
Vehicle parking must be in an above ground Parkade or underground Parkade and be integrated into multi-use buildings where large vehicle parking volumes are unavoidable. |
5.10. |
Green Parking Lots must be incorporated where feasible. |
Transportation Impact Analysis
|
5.11. |
A transportation impact analysis that details the traffic impacts and any related network improvements needed to support the proposed development may be required, at the discretion of the Development Planner. |
Additional Development Regulations
|
5.12. |

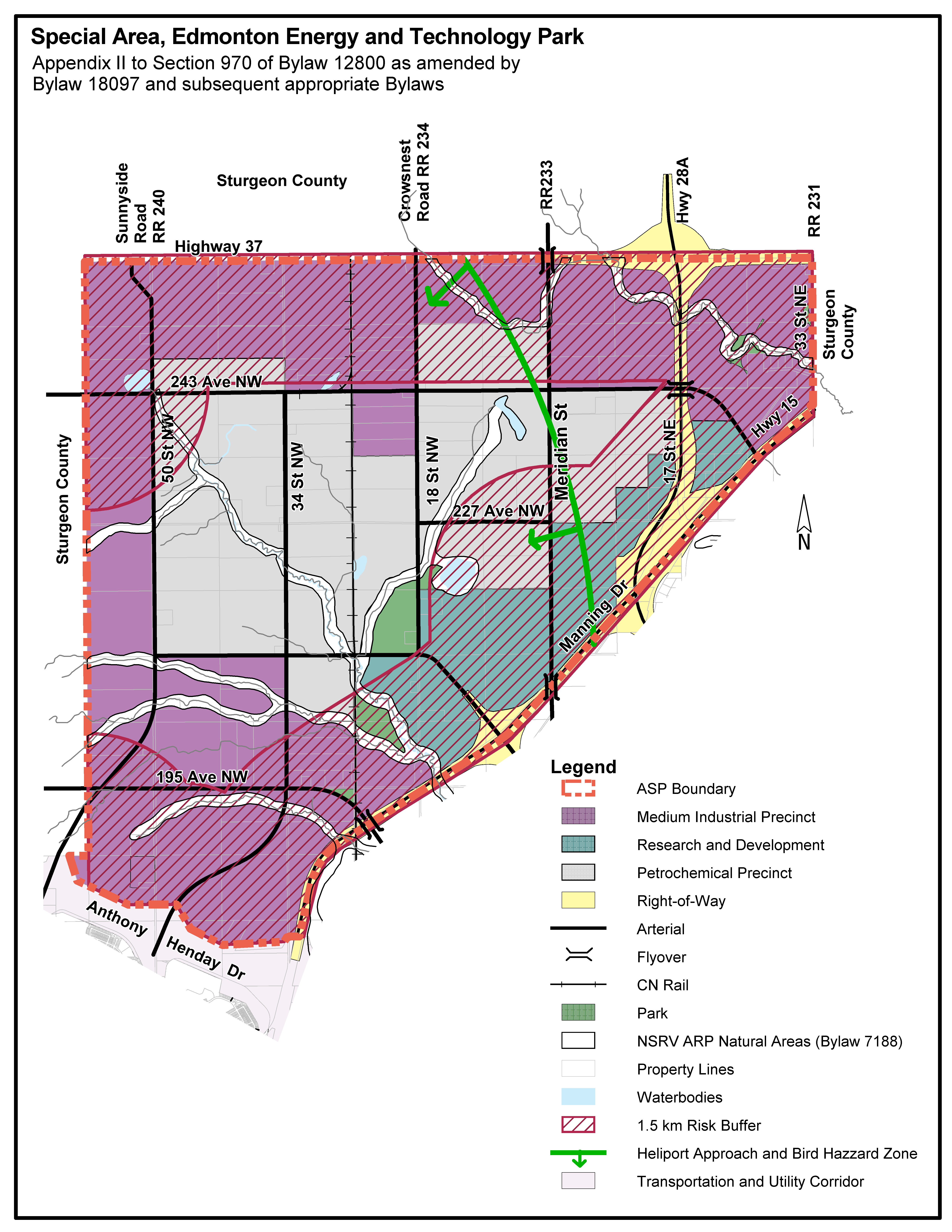

The applicant for a development within the heliport approach and bird hazard zone as shown on Appendix II must be required to consult with the Department of National Defence to ensure that the proposed development is consistent with applicable federal regulations regarding, but not limited to; |
|
5.12.1. |
Height; and |
5.12.2. |
stormwater management facilities. |
|
5.13. |
Renewable Energy Devices that are characterized as free standing solar and/or wind turbine structures require a Development Permit and must comply with the following regulations: |
|
5.13.1. |
Signs on the device are limited to those needed to identify the property, the owner, and warn of any danger, and educational Signs providing information on the technology and renewable energy usage. |
5.13.2. |
Maximum Height requirements do not apply to Renewable Energy Devices as a utility. |
5.13.3. |
The minimum distance from the base of any structure, or tower to any property line, habitable structure, business or institutional Use must be equal to 1.2x the total Height of the structure to the highest point. |
5.13.4. |
Building mounted micro wind structures must be Sited so that all parts of the system are located within the Setbacks or a minimum of 1.0 m from any property line, whichever is greater. |
5.13.5. |
The Development Planner may require that equipment necessary for the monitoring and operation of the Renewable Energy Device be screened from view from any Streets, and from adjacent Sites if such protections are inconsistent with the character and appearance of surrounding development or the intended visual qualities of this Zone. |
|
5.14. |
If a non-conforming building is damaged or destroyed to the extent of more than 75% of the value of the building above its foundation, a building permit may be issued, within 6 months of the building being damaged or destroyed, under an existing valid Development Permit, in order to allow the building to be repaired or rebuilt in its original form. |
